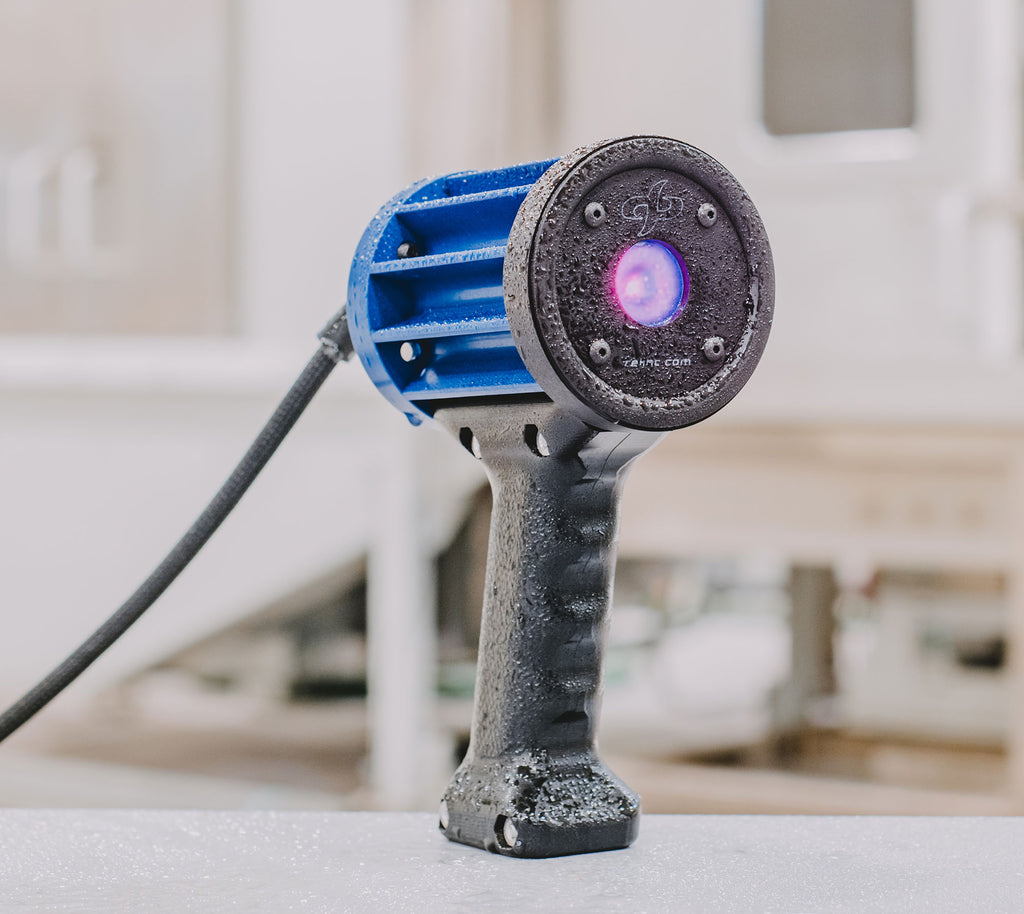

C4 Magnum LED UV-A Inspection Lamp

The REL C4 Magnum Glo-Black LED UV-A inspection lamp utilizes the latest in safe high output UV-A LED technology. This Glo-Black LED UV-A inspection lamp is a highly maneuverable lightweight solution that maximizes operator safety and time on task. The C4 Magnum contains 4 high flux-UV LED emitters that have a built in static-electric discharge circuit to allow the light to perform in all environments regardless of ambient conditions.


Learn More About This Product
Name(Required)
Hidden
Hidden

SKU UV-2000 Categories , , ,

Description

The C4 Magnum-GO provides a 10-inch diameter of UV-A intensity >1000 µW/cm² at 15 inches. The integral filter in the UV-A emitter limits the visible light to 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches. The LED white light provides an intensity > 700-foot candles at 15 inches. The lamp’s electrical components are IP67 sealed and passively cooled within an engineered finned housing manufactured from military-grade aluminum. The lamp performs in all environments regardless of ambient conditions. The C4 Magnum-GO LED UV-A with white light will survive the toughest, wettest, and most severe work environments on the planet!

  • UV-A and white light emitters for darker inspection environments.
  • Easy to use one hand controls with clear indicators for lamp on/off operation.
  • Visible Spectrum (white light) LED provides an intensity > 700 foot-candles at 15 inches.
  • Engineered fin housing allows for maximum heat transfer in the harshest environment.s
  • Built-in static-electric discharge unit safety feature.
  • AC Power: 120/240V.
  • Individual lamp dimensions: 7.6” H x 3.0” W x 4.1” D
  • Individual lamp weight: 1.7 lbs.
  • 2-year Warranty.
  • Refurbishable.
