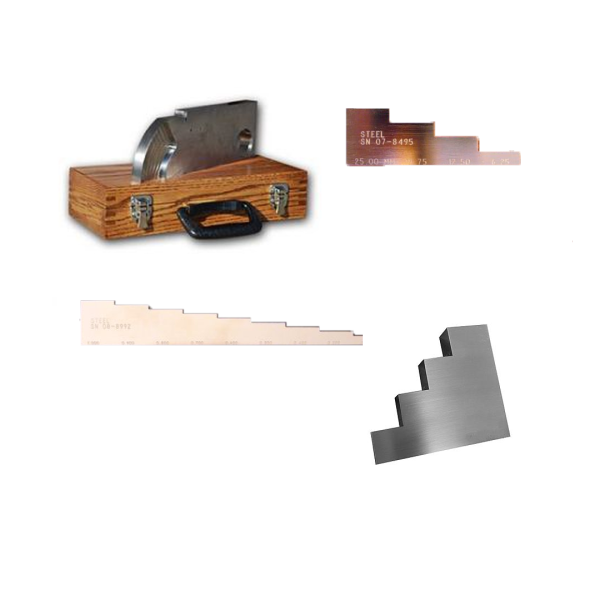

Reference Blocks

Reference blocks and standards are essential in ultrasonic inspections for calibration and accuracy verification. These specialized blocks mimic the properties of the materials being inspected and serve as benchmarks for equipment performance. They ensure proper calibration, sensitivity, and resolution of ultrasonic equipment. Reference blocks are also used for training and certification, establishing industry standards. By utilizing these tools, inspectors can confidently assess material integrity and detect defects accurately in various industries.

Learn More About This Product


Reference blocks are typically made of materials with known acoustic properties, such as specific dimensions, flaw sizes, and material compositions. These blocks are manufactured to precise standards and are used to calibrate ultrasonic equipment, ensuring that it is functioning correctly and providing accurate measurements.

During an ultrasonic inspection, reference blocks are used to verify the sensitivity, resolution, and calibration of the equipment. By comparing the ultrasonic response obtained from the reference block to the expected results, inspectors can determine if the equipment is operating within acceptable parameters.

Reference blocks and standards are also used for training and certification purposes. They provide a standardized means of evaluating the competency and proficiency of ultrasonic inspectors. By testing their ability to correctly identify and measure flaws within the reference blocks, inspectors can demonstrate their expertise and adherence to industry standards.

The use of reference blocks and standards helps ensure the reliability and consistency of ultrasonic inspections. They provide a baseline for evaluating the performance of equipment, establishing traceability, and maintaining quality control. By utilizing these reference tools, inspectors can confidently assess the integrity of materials and identify defects with precision in a wide range of industries, including manufacturing, construction, and non-destructive testing.
